SATEL STAM-1 PTSA Synoptic card for STAM event reception station

Synoptic card for STAM event reception station

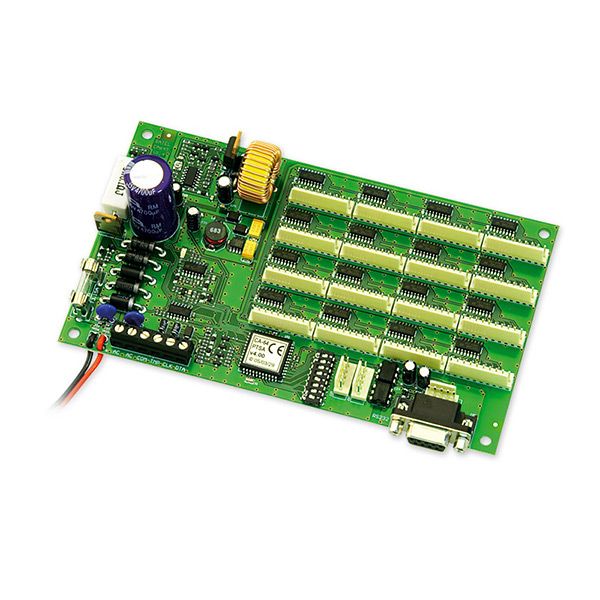

STAM-1 PTSA is a synoptic board that shows the status of the monitored rooms via LEDs. A single synoptic card allows you to see the status of up to 64 monitored rooms (two LEDs for each room). To view a larger number of rooms, it is possible to connect multiple synoptic cards (only the first card is connected directly to the monitoring station, while the expansion cards are connected to each other). Up to 63 synoptic cards can be used in a single system, which allows the status of up to 4032 rooms to be displayed. You can configure the LED lighting pattern using the monitoring station program.

The synoptic board is equipped with a 1.3 A switching power supply with battery charger and status control circuit (up to 7 Ah).
