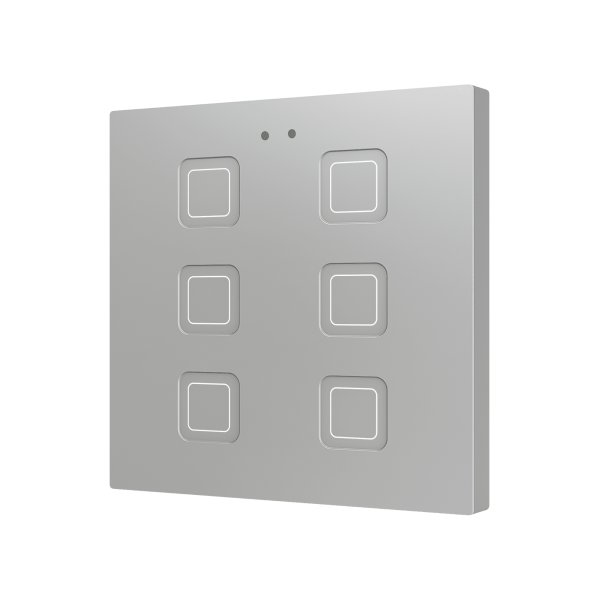

ZENNIO ZVIT6S Key cap tab, 6 keys, silver

<p/the ZENNIO ZVIT6S product is a high-quality capacitive touch switch, designed to meet the needs of control and automation in KNX installations.

Key Features

This switch is available in versions with 1, 2, 4, 6 or 8 keys, all equipped with customizable icons and backlighting that adapts to the ambient brightness and the detection of presence through a proximity sensor.

Design and Materials

Made of polycarbonate, the ZVIT6S has an elegant and robust design, suitable for various environments. The icons are customizable using Zennio's Touch-MyDesign tool.

Technical Functionality

In addition to the capacitive keys, the switch incorporates an internal temperature sensor and a thermostat. In addition, it has 2 analog-digital inputs that can be configured as binary inputs, sensors, buttons, temperature probes or motion detectors.

accessories

• Temperature probe
• Motion detector

Power supply and connections

The switch is powered by the KNX bus and includes connections for the KNX bus and configurable inputs.

Monitoring and Control

The backlight of the icons adjusts its brightness according to the ambient brightness and dims when the user is not detected by the proximity sensor, ensuring optimal energy efficiency.
