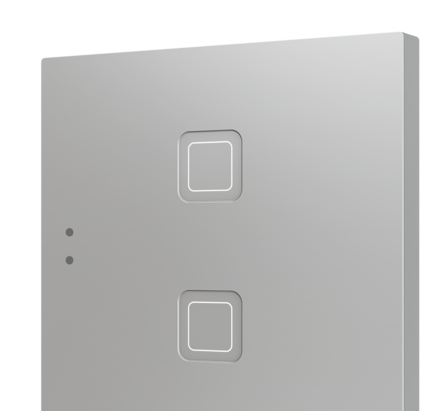

ZENNIO ZVIT2S Tecla Capacitive Keyboard, 2 Keys, Silver
- MT Code
- ZNN_ZVIT2S
- Manufacturer Code
- ZVIT2S
- Brand
- ZENNIO
Illuminated with LEDs and sensitive to capacitive touch, the ZENNIO ZVIT2S switches of the Flat family are designed to offer a customizable and technologically sophisticated solution for the control of domestic and industrial installations.
Key Features
These switches are available in 1, 2, 4, 6 or 8 button versions, all equipped with illuminated icons that adjust the brightness based on the ambient brightness and the proximity sensor. Their flat design (9 mm thick) and the possibility of personalization with images, icons, texts or logos printed on high-strength tempered glass make them ideal for modern and functional environments.
Sensors and Functionality
Each model includes an internal temperature sensor and a thermostat, as well as two analog-digital inputs that can be configured as binary inputs, sensors, buttons, temperature probes or motion detectors. Available accessories include a temperature probe and a motion detector.
Personalization and Integration
The customization of ZVIT2S switches is possible through the online design tool Touch-MyDesign, which allows you to create unique compositions adapted to the user's specific needs. Available colors include white, black, silver, and custom.
Power supply and connections
The switches are powered by the KNX bus and offer connections via the KNX bus and configurable inputs.
Operation
- The buttons are sensitive to capacitive touch and react to the user's presence thanks to the proximity sensor.
- The illuminated icons automatically adapt to the ambient brightness to optimize visibility and energy consumption.
- The two analog-digital inputs can be configured for different applications, offering flexibility and versatility in use.
| Codice a barre | 8000002730259 |
|---|---|
| Codice Produttore | ZVIT2S |
| Brand | ZENNIO |
