NOTIFIER NRX-REP WIRELESS REPEATER

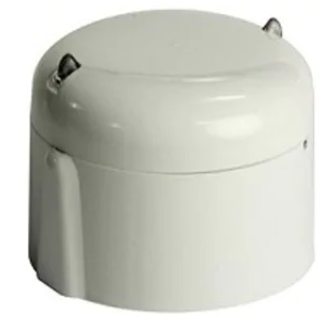

The NRX-REP radio repeater is a battery-powered radio frequency device designed to be used with the NRXI-GATE gateway. It contains a transceiver and is integrated into an addressable fire system using a proprietary communication protocol. The repeater fits into the same base as the wireless sensors. The B501RF. It is used to expand the radio coverage area of the fire detection system. The device complies with EN54-25 and EN54-18 and complies with the requirements of the EN 300 220 and EN 301 489 standards for compliance with the R and TTE Directive. Standby current. 120 μA at 3 V DC (typical in normal operating mode) Red LED current. 4 mA max Resynchronization time. 35 s (maximum time from turning on the device to normal RF communication when the network is active) Batteries. 4 Duracell Ultra 123 Battery life. 4 years at 25oC Radio frequency. 865-870 MHz. RF output power. 14 dBm (max) Range. 500 m (typical in free air) Relative humidity. 10 percent to 93 percent (without condensation).
