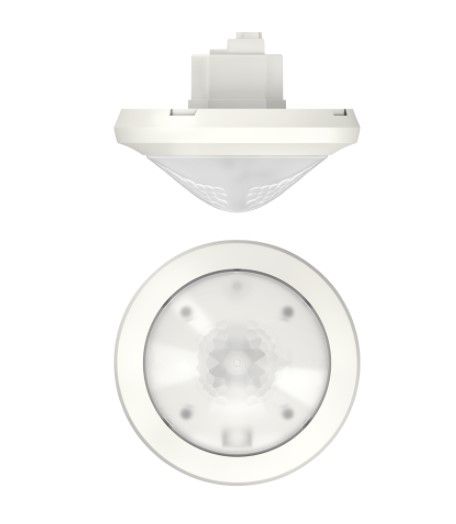

THEBEN 2019300 thePassa P360 KNX UP WH RILEVATORE 30m CORSIE

Function Description

• KNX Passive infrared presence detector for ceiling mounting
• Rectangular detection range for corridors and warehouse aisles
• Detection range with 2 individually connectable and disconnectable detection zones, each 15 x 5 m (total 30 x 5 m)
• 2 light channels and 2 presence channels
• 2 light channels C1, C2 with 1 light measurement
• 2 individually adjustable presence channels with offset
• Adaptive 2-channel light metering
• Mixed light measurement suitable for LED, fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps
• Sliding light: recognizes the direction of passage of people in the room and "preventively" switches on the light in the adjacent lighting groups
• Halo effect: the halo effect function turns on the lighting group within the detection range in which a person is located and reduces the brightness of adjacent groups
• Travel direction detection: improves comfort e.g. automatically opening the doors when a person approaches
• Operation switchable between fully automatic or semi-automatic
• Operation with switching or constant light regulation with stand-by
• Adjustable lighting with switching operation with stand-by function
• Brightness switching value or programmed value with lux adjustable via parameters, object or remote control
• Teach-In of the brightness switching value or programmed value
• Setting the local correction factor for adjusting the brightness measurement
• Light tail time adjustable via parameters, object or remote control
• Possibility to set arming delay and presence queue time
• Adjustable detection sensitivity
• Self-learning queuing time
• Reduction of queuing time in case of short presence
• Scene functionality
• Test mode for checking the function and detection range
• Parallel connection of several detectors possible in Master/Slave or Master/Master
• Possibility of limiting the detection range via segments
• Manual control via telegram or remote control
• Ceiling mounting in recessed box
• Ceiling mounting possible with visible frame
• User remote control and, management remote control (optional)
