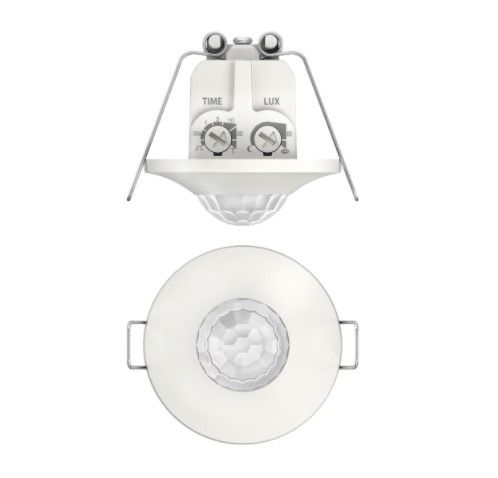

THEBEN 2090200 THEPICCOLA P360-100 DE RIL PRES 360 degrees RECESSED

Function Description

• Passive infrared presence detector for ceiling mounting
• 360° round detection range, up to Ø 8 m (50 m2)
• 1 light channel
• Automatic control based on presence and brightness for lighting
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps and LEDs
• Operation switchable between fully automatic or semi-automatic
• Adjustable brightness switching value (Default 300 lx), teach-in function
• Ability to set insertion delay and queue time
• Test mode for checking the function and detection range
• Connection solutions for manual switching buttons
• Expansion of the detection range thanks to the master-slave connection
• Pulse function
• Ceiling section diameter 34–36 mm
• User remote control, management remote control (optional)
