THEBEN 2070105 THEPREMA P360-101 E UP WH

THEBEN 2070105 THEPREMA P360-101 E UP WH

MT Code
THE_2070105
Manufacturer Code
2070105
Brand
THEBEN
THEBEN
CORSO KNX Aprile
Description

Function Description

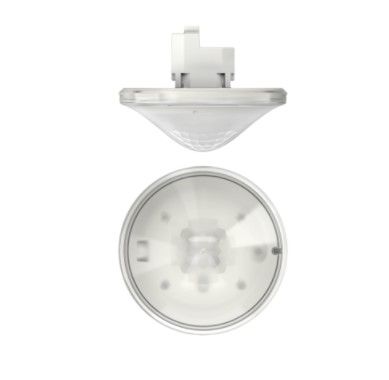

  • Passive infrared presence detector for ceiling mounting
  • 360° square detection range (up to 100 m2) for simple and safe planning
  • Automatic control based on presence and brightness for lighting and HVAC
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps and LEDs
  • Light measurement switchable to spot or wide measurement
  • Channel A light: external relay, 230V
  • Operation switchable between fully automatic or semi-automatic
  • Adjustable brightness switching value, teach-in function
  • Self-learning queuing time
  • Reduction of queuing time in case of short presence (Presence for a short period)
  • Connection solutions for buttons or switches for manual switching with automatic button/switch recognition
  • Pulse function for staircase light timer
  • Channel H, presence: relay, potential-free
  • e.g. for RCV command
  • Operating modes of light and presence relay can be flexibly selected using the SendoPro remote control
  • Ability to set insertion delay and queue time
  • Local surveillance with selective motion detection
  • Immediately ready for operation thanks to factory presetting
  • Easier setting of the energy saving option with the new «eco plus» function
  • Test mode for checking the function and detection range
  • Expansion of the detection range thanks to the master-slave and master-master connection, a maximum of 10 detectors can be connected in parallel
  • Flexible relay operating modes
  • Ceiling mounting in recessed box
  • Ceiling mounting possible with visible frame
  • theSenda S user remote control, SendoPro management remote control (optional)
Data Sheet
Codice Produttore 2070105
Brand THEBEN
