THEBEN 2079001 THEPREMA P360 KNX UP GRAY

THEBEN 2079001 THEPREMA P360 KNX UP GRAY

MT Code
THE_2079001
Manufacturer Code
2079001
Brand
THEBEN
THEBEN
CORSO KNX Aprile
Description

Function Description

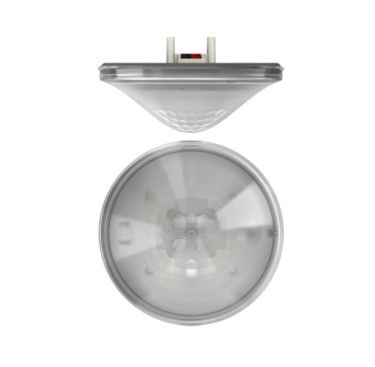

  • KNX Passive infrared presence detector for ceiling mounting
  • 360° square detection range (up to 100 m2) for safe and simple planning
  • 3 light channels and 2 presence channels
  • 2 light channels C1, C2 with 2 light measurements and additional channel C3 without influence on brightness
  • 2 individually adjustable presence channels
  • Adaptive 3-channel light metering
  • Mixed light measurement suitable for LED, fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps
  • Operation switchable between fully automatic or semi-automatic
  • Operation with switching or constant light regulation with stand-by
  • Adjustable lighting with switching operation with stand-by function
  • Brightness switching value or programmed value with lux adjustable via parameters, object or remote control
  • Teach-In of the brightness switching value or programmed value
  • Setting the local correction factor for adjusting the brightness measurement
  • Light tail time adjustable via parameters, object or remote control
  • Possibility to set arming delay and presence queue time
  • Adjustable detection sensitivity
  • Self-learning queuing time
  • Reduction of queuing time in case of short presence
  • Scene functionality
  • Easier setting of the energy saving option with the new "eco-plus" function
  • Test mode for checking the function and detection range
  • Parallel connection of several detectors possible in Master/Slave or Master/Master
  • User remote control and, management remote control (optional)
  • Local surveillance
Data Sheet
Codice Produttore 2079001
Brand THEBEN
