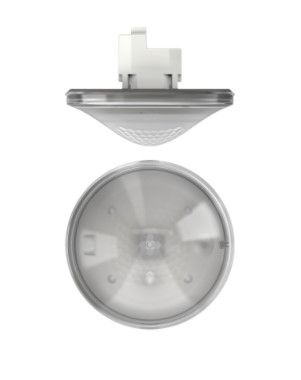

THEBEN 2070601 THEPREMA S360-100 E UP GR

Function Description

• Passive infrared presence detector for ceiling mounting
• 360° square detection range (up to 64 m2) for simple and safe planning
• Automatic control based on presence and brightness for lighting
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps and LEDs
• Channel A light: external relay, 230V
• Operation switchable between fully automatic or semi-automatic
• Adjustable brightness switching value, teach-in function
• Self-learning queuing time
• Reduction of queuing time in case of short presence
• Connection solutions for buttons or switches for manual switching with automatic button/switch recognition
• Pulse function for staircase light timer
• Immediately ready for operation thanks to factory presetting
• Easier setting of the energy saving option with the new «eco plus» function
• Test mode for checking the function and detection range
• Expansion of the detection range thanks to the master-slave and master-master connection, a maximum of 10 detectors can be connected in parallel
• Ceiling mounting in recessed box
• Ceiling mounting possible with visible frame
• theSenda S user remote control, SendoPro management remote control (optional)
