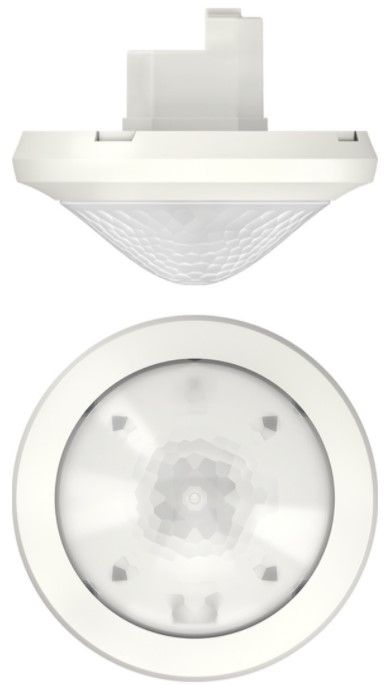

THEBEN 2080021 theRonda P360-100 M UP GR

Description of operation

- Passive infrared presence detector for ceiling mounting

- 360° round detection range, up to Ø 24 m (452 ​​m2)

- Automatic control based on presence and brightness for

lighting

- Measurement in mixed light suitable for fluorescent lamps (FL/PL/ESL),

halogen, incandescent and LED lamps

- Channel A light: external relay, 230 V

- Operation switchable between fully automatic or

semi-automatic

- Adjustable brightness switching value, teach-in function

- Reduction of queuing time in case of short presence (Presence for one

short period)

- Connection solutions for buttons or switches for switching

manual with automatic recognition of keys/switches

- Pulse function for stair light timer

- Ability to set insertion delay and queue time

- Possibility of limiting the detection range via segments

- Immediately ready for use thanks to the pre-setting of

factory

- Test mode for verifying the function and detection range

- Expansion of the detection range thanks to the masterslave and master-master connection, they can be connected in parallel at most

10 detectors

- Ceiling mounting in recessed box

- Ceiling mounting possible with visible frame

- theSenda S user remote control, SendoPro management remote control

(optional)
