THEBEN 2080020 theRonda P360-100 M UP WH

THEBEN 2080020 theRonda P360-100 M UP WH

MT Code
THE_2080020
Manufacturer Code
2080020
Brand
THEBEN
THEBEN
CORSO KNX Aprile
Description

Function Description

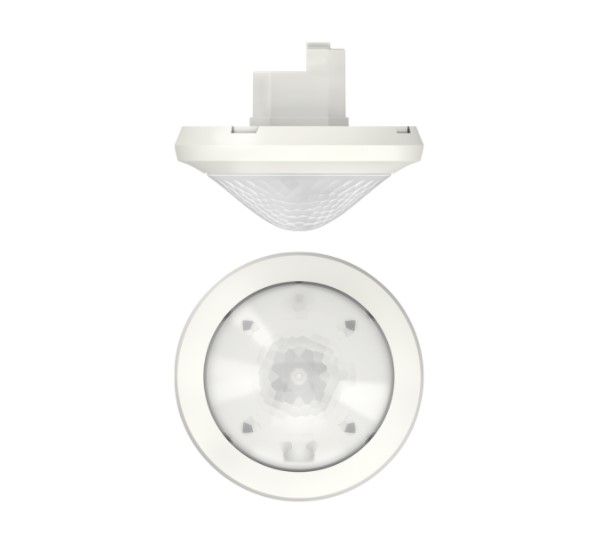

  • Passive infrared presence detector for ceiling mounting
  • 360° round detection range, up to Ø 24 m (452 ​​m2)
  • Automatic control based on presence and brightness for lighting
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps and LEDs
  • Channel A light: external relay, 230V
  • Operation switchable between fully automatic or semi-automatic
  • Adjustable brightness switching value, teach-in function
  • Reduction of queuing time in case of short presence (Presence for a short period)
  • Connection solutions for buttons or switches for manual switching with automatic button/switch recognition
  • Pulse function for staircase light timer
  • Ability to set insertion delay and queue time
  • Possibility of limiting the detection range via segments
  • Immediately ready for operation thanks to factory presetting
  • Test mode for checking the function and detection range
  • Expansion of the detection range thanks to the master-slave and master-master connection, a maximum of 10 detectors can be connected in parallel
  • Ceiling mounting in recessed box
  • Ceiling mounting possible with exposed frame
  • theSenda S user remote control, SendoPro management remote control (optional)
Data Sheet
Codice Produttore 2080020
Brand THEBEN
