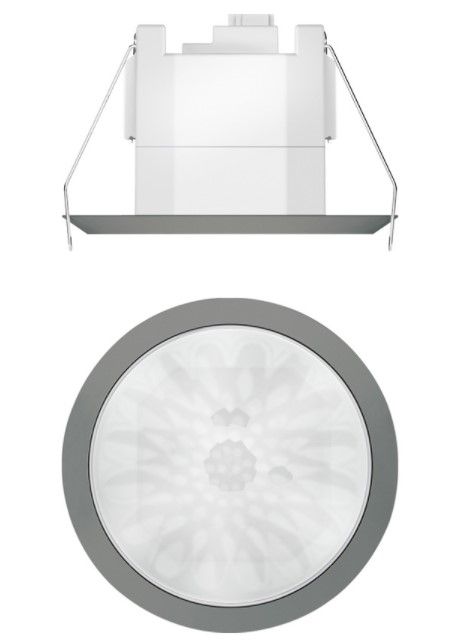

THEBEN 2089561 theRonda S360 KNX FLAT DE GR

Description of operation

- Passive infrared presence detector for ceiling mounting

- 360° circular detection range, up to Ø 9 m (64 m²)

- Automatic control based on presence and brightness for

lighting and HVAC

- Measurement in mixed light suitable for fluorescent lamps (FL/PL/ESL),

halogen/incandescent and LED lamps

- 2 light channels C1, C2

- Constant light switching or dimming operation with functionality

stand-by (orientation light)

- Switching operation with adjustable lighting

- Operation switchable between fully automatic or

semi-automatic

- Brightness switching value or value programmed with lux

adjustable via parameters, object or remote control

- Teach-In of the brightness switching value or programmed value

- Reduction of queuing time in case of short presence (presence a

short time)

- Manual override by telegram or remote control

- 2 presence channels C4, C5, individually parameterizable

- Ability to set insertion delay and queue time

- Setting the room correction factor for the regulation of the

brightness measurement

- Adjustable sensitivity

- Test mode for checking the function and detection range

Scenes

- Parallel connection of multiple presence detectors (master/slave or

master/master)

- «theSenda S» user remote control (optional)

- «SendoPro 868-A» management remote control (optional)

- «theSenda P» installation remote control (optional)
