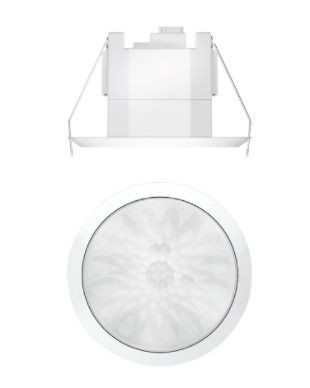

THEBEN 2089560 theRonda S360 KNX FLAT DE WH - RILEV 360 INC

Function Description

• Passive infrared presence detector for ceiling mounting
• 360° circular detection range, up to Ø 9 m (64 m²)
• Automatic control based on presence and brightness for lighting and HVAC
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• 2 light channels C1, C2
• Constant light switching or dimming operation with standby functionality (orientation light)
• Switching operation with adjustable lighting
• Operation switchable between fully automatic or semi-automatic
• Brightness switching value or programmed value with lux adjustable via parameters, object or remote control
• Teach-In of the brightness switching value or programmed value
• Reduction of queuing time in case of short presence (short-term presence)
• Manual override by telegram or remote control
• 2 presence channels C4, C5, individually parameterizable
• Ability to set insertion delay and queue time
• Setting the room correction factor for adjusting the brightness measurement
• Adjustable sensitivity
• Test mode for verifying the function and detection range of Scene
• Parallel connection of multiple presence detectors (master/slave or master/master)
• «theSenda S» user remote control (optional)
• «SendoPro 868-A» management remote control (optional)
• Installation remote control «theSenda P» (optional)
