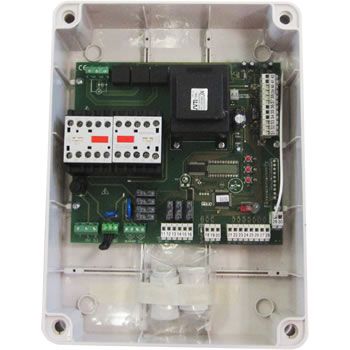

ALLMATIC 12001107 THREE-PHASE CT3IND IN BOX Control unit for control and operation

MT Code: ALL_12001107
Manufacturer Code: 12001107
Brand: ALLMATIC

Description

THREE-PHASE CT3IND IN BOX

Control

unit for the control and operation, using remote switches, of industrial automation to a THREE-PHASE 50Hz 400 Vac 1.5KW max motor or SINGLE-PHASE 230 Vac 50Hz 800W max

Main features:

Amperometric sensor on each phase for detecting obstacles
Phaseless verification system (only for three-phase motor).
Motor-saving function that limits the maximum current (current limited to 10A).
Large display and 3 buttons for adjusting parameters.
Integrated radio receiver.
Adjustable obstacle detection.
Self-diagnosis of safety devices.

LED for signalling input status.

Available inputs: open button, close button, step-by-step button, pedestrian button, stop button, shutter when opening and closing, 2 photocells and 2 safety edges (N.C. or 8k2).

Outputs: integrated traffic light, on-board flashing circuit, 230 Vac flashing board, courtesy light, 24 Vac/DC accessory power supply, radio receiver module.

Dim. (mm) W x D x H = 300 x 220 x 120 BOX

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	12001107
Brand	ALLMATIC
Compatibilità motore	Trifase 400 Vac 50Hz 1.5KW max o Monofase 230 Vac 50Hz 800W max
Corrente massima limitata	10	A
Ingressi disponibili	apri, chiudi, passo-passo, pedonale, stop, finecorsa in apertura e chiusura, 2 fotocellule, 2 coste di sicurezza (NC o 8k2)
Uscite disponibili	semaforica integrata, circuito di lampeggio a bordo scheda per lampeggiante 230 Vac, luce di cortesia, alimentazione accessori 24 Vac/dc, modulo radio ricevente
Versione del box	Box semplice
