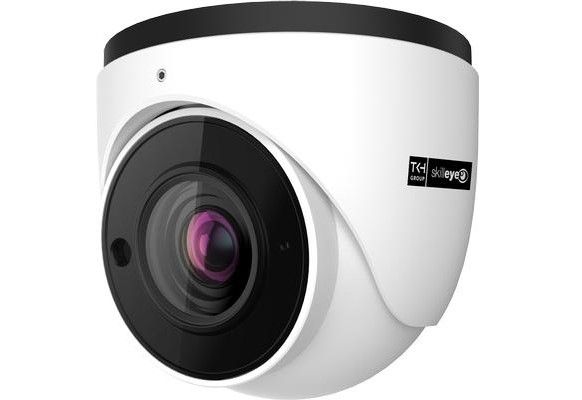

TKH SkillEye 4in1 Eyeball Camera

SEC-11E1541ITA TKH SkillEye 4in1 Eyeball Camera

MT Code: SKL_SEC-11E1541ITA
Manufacturer Code: SEC-11E1541ITA
Brand: SKILLEYE

TKH SkillEye 4in1 Eyeball camera (AHD/HD-TVI/HD-CVI/CVBS selectable via Dip Switch), 1/2.5 inch CMOS 8MP Progressive Scan, Day/Night (ICR), 8MP (3840x2160pxl)/15fps or 5MP (2592x1944pxl) /20fps or 4MP (2592x1520pxl)/30fps, Motorized Varifocal Lens Autofocus 2.8-12 mm, 30-50m IR LEDs, Sensitivity 0.01 luxF1.2 (AGC ON) in B/W or 0 Lux with IR ON, S/N>52dB (AGC Off), Electronic Shutter 1/50-1/100000s, BLC, 3D DNR, AWB, CoC (OSD with coaxial control), Video format selection via dip switch, IP67/IK10 for indoor/outdoor use, Metallic case, Installation on three axes. Power supply 12VDC+-10percent, max 4.5W. Operating temperature -30 degrees C - +50 degrees C, Relative humidity <90 percent. Dimensions diameter 115.5 x H 99.6 mm. Weight 550g.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	SEC-11E1541ITA
Brand	SKILLEYE
Alimentazione	12V DC
Sensore	1/2.5" CMOS 8MP Progressive Scan
Risoluzione	8MP (4K)
Ottica	Varifocale Motorizzata Autofocus 2.8-12mm
Distanza IR	30-50	m
Alimentazione	12Vdc ±15%	V
Assorbimento	5	W
Grado di protezione IP	IP67
Grado di protezione IK	IK10
