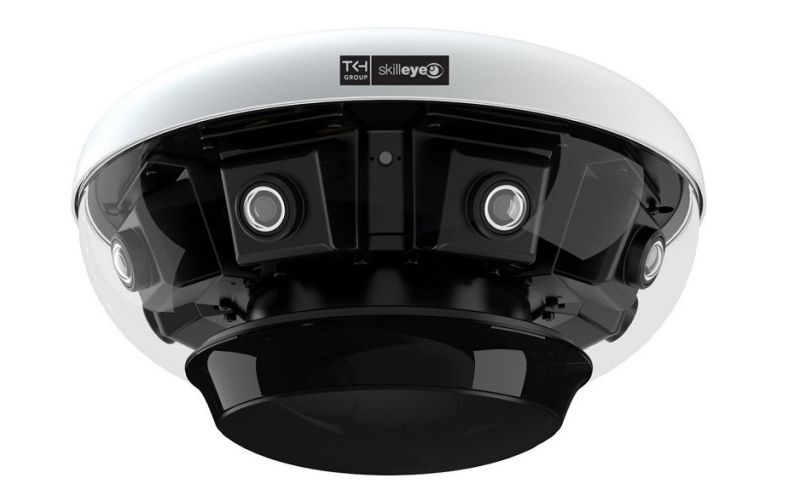

TKH Skilleye IP 360 degree panoramic camera

SEI-P16140-TI-360 TKH Skilleye IP 360 degree panoramic camera

MT Code: SKL_SEI-P16140-TI-360
Manufacturer Code: SEI-P16140-TI-360
Brand: SKILLEYE

TKH Skilleye IP Camera Panoramic 360degrees /Night (ICR), dWDR 120dB, Sensitivity 0.008F2.0 Lux(AGC ON) or 0 Lux (IR on) in B/W, 8 3.3mm/F2.0 lenses, 20m LEDs with Smart IR. 3D DNR, 8 Privacy Mask. ONVIF Profile S, MicroSD/SDHC/SDXC slot up to 256GB. Supported protocols: HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE. Up to 16 users, up to 6 live video channels. Power supply 24VDC/24VAC/PoE++ (802.3.bt, class 6) max 45W, IP66/IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection, Metallic Case. Internal cable routing bracket. Advanced VCA A Video Analysis Support on board: Intrusion and/or Line Crossing with classification between man/motorcycle/car/other; Scene Change, Video Exception, People Counting, Face Detection. 1 In/1 Out Alarm, 1 In/1 Out Audio, G.711A/U Audio Compression. Dimensions diameter 273mm x H 180mm. Operating Temperature -30 degrees C - 55 degrees C, relative humidity <90 percent non-condensing, Cold Start from -20 degrees C. Weight 2.0Kg. SEB-C14D4 ceiling pendant bracket included.

Data Sheet

Feature	Value	Unit of measure
Codice Produttore	SEI-P16140-TI-360
Brand	SKILLEYE
Tipologia Telecamera	Panoramic 360° IP Real Time
Risoluzione Totale	16	MP
Numero Sensori	8
Sensore Immagine	1/2.8" CMOS STARLIGHT Progressive Scan
Streaming Video	Triplo Stream
Day/Night	Day/Night ICR
WDR	120	dB
Portata Illuminatore IR	20	mt
Ottiche	8 ottiche 3.3mm/F2.0
Slot Memoria Locale	Micro SD up to 256GB
Alimentazione	24VDC / 24VAC / PoE++
Consumo Massimo	25	W
Grado di Protezione IP	IP66
Grado di Protezione IK	IK10
Videoanalisi a bordo	Advanced VCA 2.0 (Attraversamento Linea, Intrusione, Conteggio Persone, Anomalie Segnale Video, Cambiamento di scena, Eccezione Video, Face Detection)
Dimensioni	Specificate in manuale/installazione a soffitto
