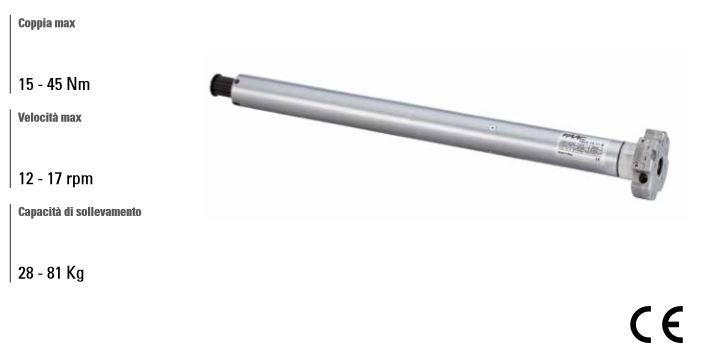

FAAC 130202 TM 45 30/17 M TUBULAR MOTOR

TM 45 30/17 M TUBULAR MOTOR

TECHNICAL CHARACTERISTICS: Max torque 30 Nm Lifting capacity 56 Kg Max speed 17 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 250 W Max run 28 Motor diameter 45 mm Length with adapter 638 mm Degree of protection IP 44 Lifting capacity means the maximum weight that can be lifted with a 60 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor (with connection cable length 2.7 m) - end of the stroke adjustment key - instruction manual
