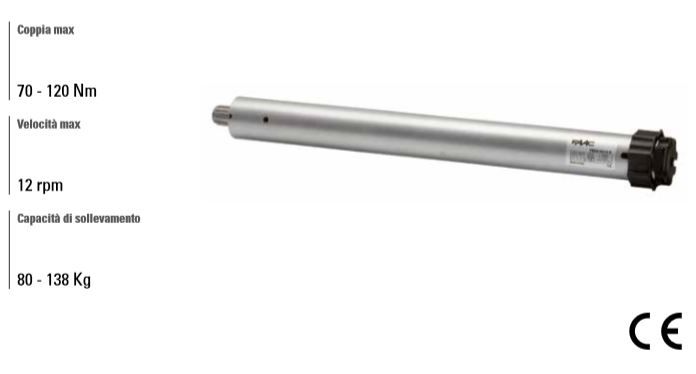

FAAC 130543 TM58 120/12 E Ø 58MM ELECTRONIC FINESTROKE TUBULAR MOTOR

TM58 120/12 E Ø 58MM TUBE MOTOR ELECTRONIC STROKE END X PUSH BUTTON CONTROL

TECHNICAL CHARACTERISTICS: Max torque 120 Nm Lifting capacity 138 Kg Max speed 12 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 450 W Max run 51 Motor diameter 58 mm Length with adapter 597 mm Degree of protection IP 44

Lifting capacity means the maximum weight that can be lifted with a 70 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor (with connection cable length 2.7 m) - instruction manual
