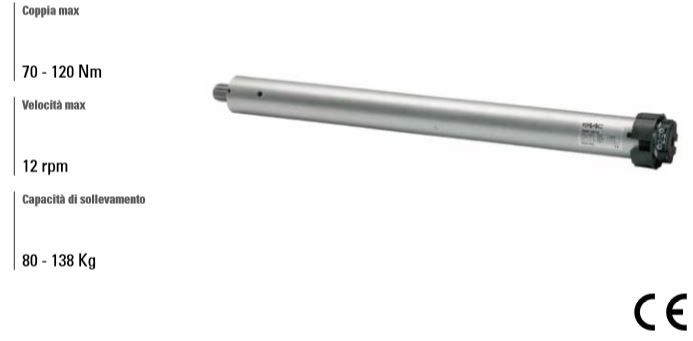

FAAC 130107 TM 58 120/12 TUBULAR MOTOR

TM 58 120/12 TUBULAR MOTOR

TECHNICAL CHARACTERISTICS: Max torque 120 Nm Lifting capacity 138 Kg Max speed 12 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 450 W Max run 28 Motor diameter 58 mm Length with adapter 617 mm Degree of protection IP 44 Lifting capacity means the maximum weight that can be lifted with a 70 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor (with connection cable length 2.7 m) - end of the stroke adjustment key - instruction manual
