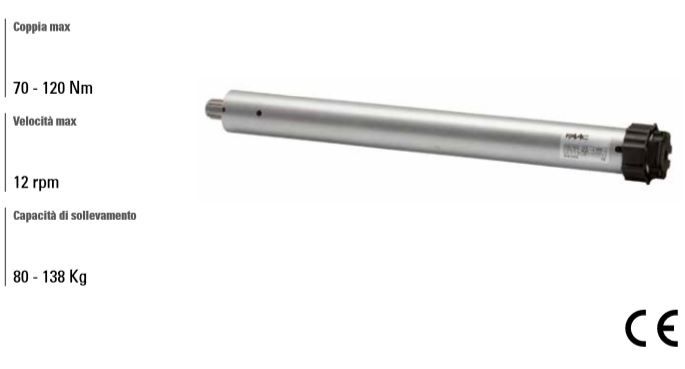

FAAC 130560 TM58 70/12 ER Ø 58MM ELECTRONIC FINE-STROKE TUBULAR MOTOR

TM58 70/12 ER Ø 58MM TUBULAR MOTOR ELECTRONIC FINESTROKE AND INTEGRATED RECEIVER

TECHNICAL CHARACTERISTICS: Max torque 70 Nm Lifting capacity 80 Kg Max speed 12 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 310 W Max run 51 Motor diameter 58 mm Length with adapter 597 mm Degree of protection IP 44

Lifting capacity means the maximum weight that can be lifted with a 70 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor (with connection cable length 2.7 m) - instruction manual
