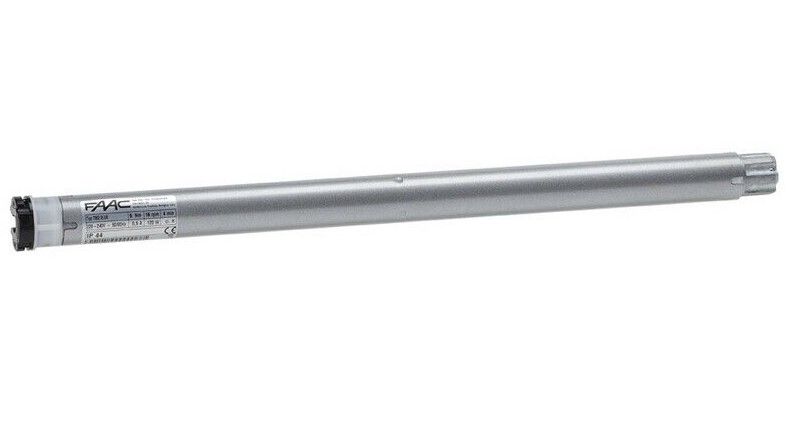

FAAC 141101 Tubular Motor For Shutters And Curtains TM2 35 05/30

Tubular Motor For Shutters And Curtains TM2 35 05/30

Tubular motor with mechanical travel window for push button control

TECHNICAL CHARACTERISTICS: Max torque: 5 Nm Lifting capacity: 8 Kg Max speed: 30 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 120 W Max stroke: 35 Motor diameter: 35 mm Length with adapter (L): 477 mm Degree of protection: IP44

The package includes: tubular motor (with connecting cable length 2.50 m) End-stroke adjustment key instruction manual adapter for octagonal tube diameter 40mm (only TM2 35 9/16 1411021)
