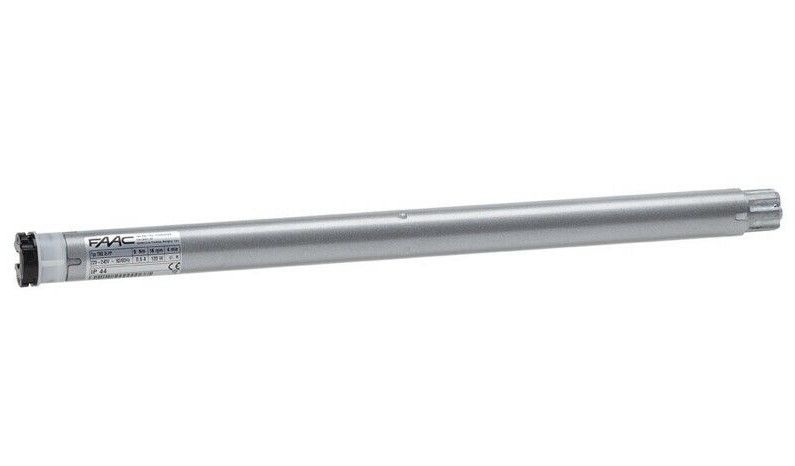

FAAC 1412011 Tubular Motor For Shutters And Curtains TM2 35 PP 09/16

Tubular Motor For Shutters And Curtains TM2 35 PP 09/16

Tubular motor with automatic shutter adjustment (Plug&Play) for application on shutters with push button control

TECHNICAL CHARACTERISTICS: Max torque: 9 Nm Lifting capacity: 24 Kg Max speed: 16 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 120 W Max run: unlimited Motor diameter: 35 mm Length with adapter (L): 547 mm Degree of protection: IP44

The package includes: tubular motor with integrated receiver (with connection cable length 2.50 m) and integrated obstacle detection instruction manual adapter for octagonal tube diameter 40mm
