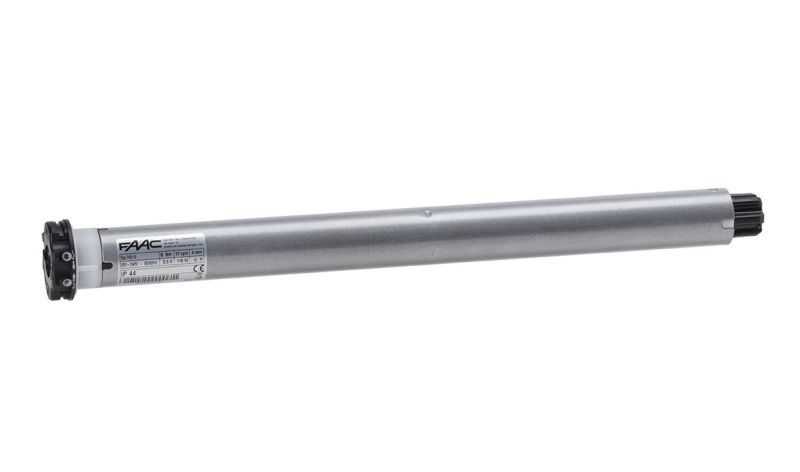

FAAC 144101 Tubular Motor For Curtain And Roller Shutters TM2 45 06/17

Tubular Motor For Curtain And Roller Shutters TM2 45 06/17

Tubular motor with mechanical travel window for push button control

TECHNICAL CHARACTERISTICS: Max torque: 6 Nm Lifting capacity: 10 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 110 W Max stroke: 25 Motor diameter: 45 mm Length with adapter (L): 476 mm Degree of protection: IP44

The package includes: tubular motor (with connecting cable length 2.50 m) End-stroke adjustment key instruction manual
