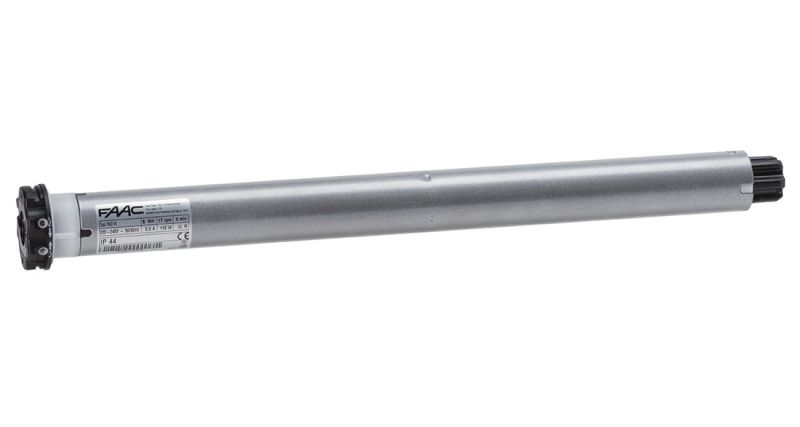

FAAC 144105 Tubular Motor For TM2 45 30/17 Curtain And Roller Shutters

Tubular Motor For TM2 45 30/17 Curtain And Roller Shutters

Tubular motor with mechanical travel window for push button control

TECHNICAL CHARACTERISTICS: Max torque: 32 Nm Lifting capacity: 56 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 250 W Max stroke: 25 Motor diameter: 45 mm Length with adapter (L): 546 mm Degree of protection: IP44 The package includes: tubular motor (with connecting cable length 2.50 m) End-stroke adjustment key instruction manual
