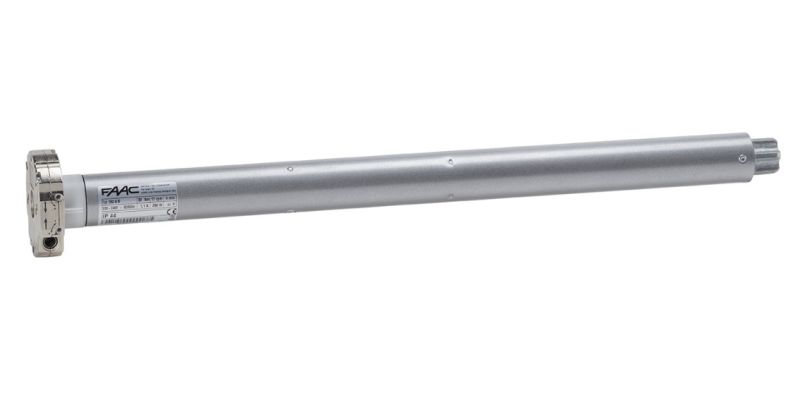

FAAC 144121 Tubular Motor For Curtain And Roller Shutters TM2 45 M 15/17

Tubular Motor For Curtain And Roller Shutters TM2 45 M 15/17

Tubular motor with mechanical travel window for push button control with manual rescue maneuver

TECHNICAL CHARACTERISTICS: Max torque: 15 Nm Lifting capacity: 28 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 170 W Max stroke: 32 Motor diameter: 45 mm Length with adapter (L): 646 mm Degree of protection: IP44

The package includes: tubular motor with rescue maneuver (with connection cable length 2.50 m) End of stroke adjustment key instruction manual
