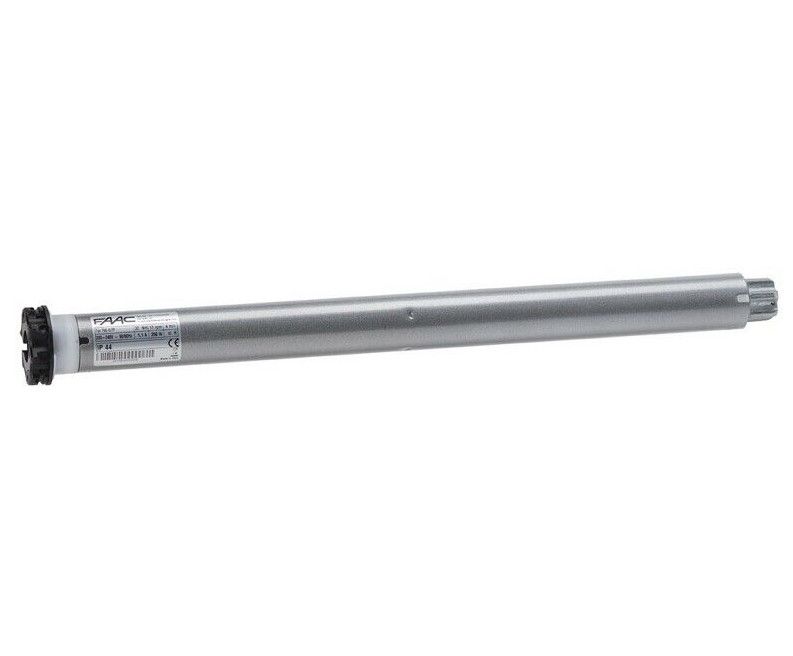

FAAC 1442051 TM2 45 PP 32/17 Tubular Roller Shutter Motor

TM2 45 PP 32/17 Tubular Roller Shutter Motor

Tubular motor with automatic shutter adjustment (Plug and Play) for application on shutters with push button control

TECHNICAL CHARACTERISTICS: Max torque: 32 Nm Lifting capacity: 47 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 250 W Motor diameter: 45 mm Length with adapter (L): 546 mm Degree of protection: IP44

The package includes: tubular motor with integrated receiver (with connection cable length 2.50 m) and integrated obstacle detection instruction manual adapter for octagonal tube diameter 60mm
