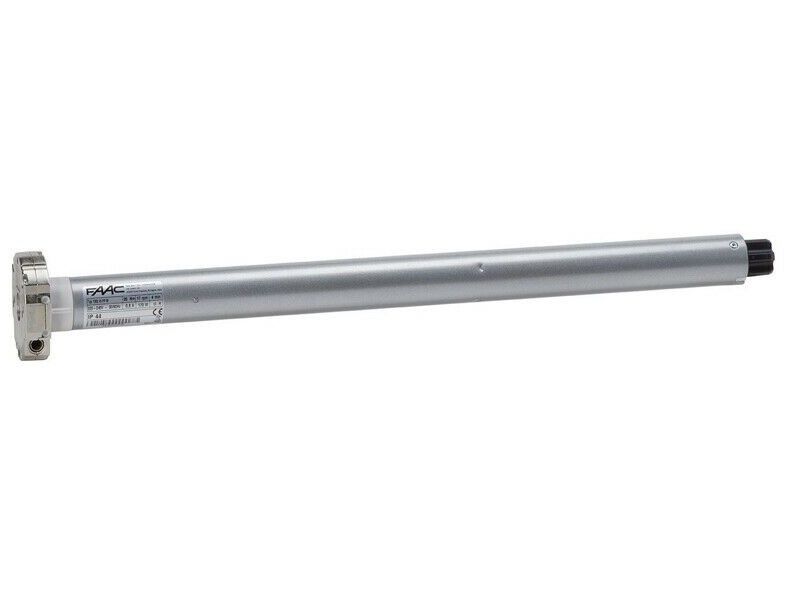

FAAC 1442121 TM2 45 PP M 20/17 Tubular Roller Shutter Motor

TM2 45 PP M 20/17 Tubular Roller Shutter Motor

Tubular motor with automatic window adjustment (Plug and Play) and manual rescue maneuver for application on shutters with push button control

TECHNICAL CHARACTERISTICS: Max torque: 20 Nm Lifting capacity: 28 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 170 W Motor diameter: 45 mm Length with adapter (L): 646 mm Degree of protection: IP44 The package includes: tubular motor with integrated receiver (with connection cable length 2.50 m) and integrated obstacle detection instruction manual adapter for octagonal tube diameter 60mm
