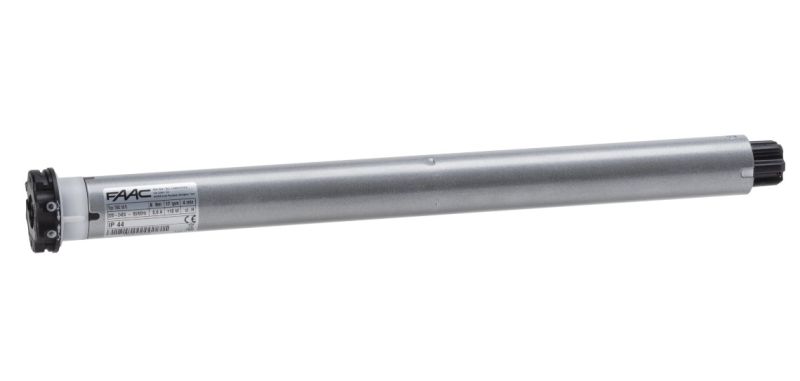

FAAC 144114 Tubular Motor For TM2 45 R 32/17 Curtain And Roller Shutters

Tubular Motor For TM2 45 R 32/17 Curtain And Roller Shutters

Tubular motor with electronic shutter and integrated receiver for remote control operation (433 MHz)

TECHNICAL CHARACTERISTICS: Max torque: 32 Nm Lifting capacity: 56 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 250 W Max stroke: 25 Motor diameter: 45 mm Length with adapter (L): 646 mm Degree of protection: IP44

The package includes: tubular motor with integrated receiver (with connection cable length 2.50 m) End of stroke adjustment key instruction manual
