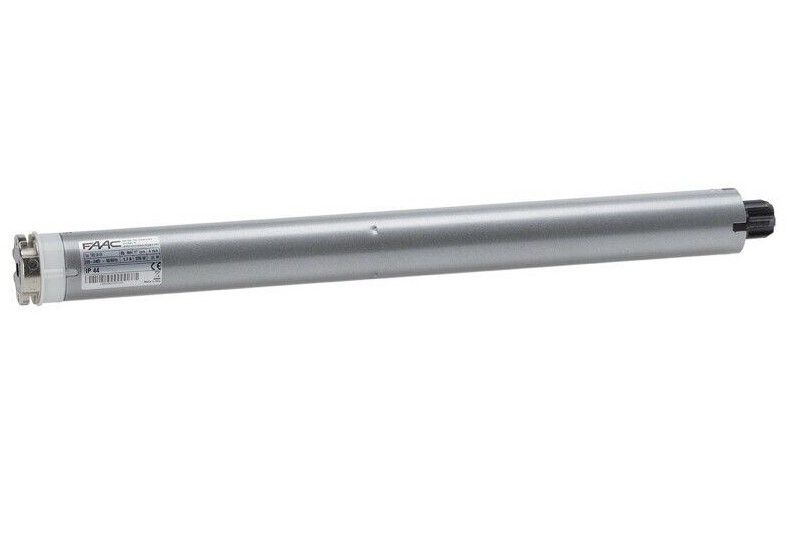

FAAC 142301 Tubular Motor For TM2 58 ER 85/17 Curtain And Roller Shutters

Tubular Motor For TM2 58 ER 85/17 Curtain And Roller Shutters

Tubular motor with mechanical travel window for push button control

TECHNICAL CHARACTERISTICS: Max torque: 85 Nm Lifting capacity: 92 Kg Max speed: 17 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 375 W Motor diameter: 58 mm Length with adapter (L): 646 mm Degree of protection: IP44

The package includes: tubular motor (with connecting cable length 2.50 m) instruction manual
