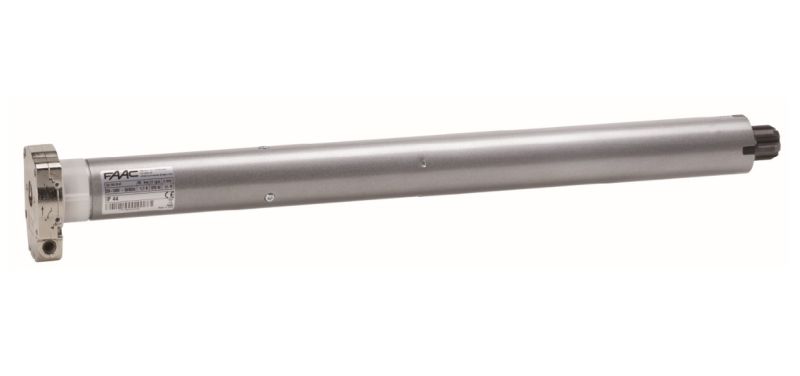

FAAC 142132 Tubular Motor For TM2 Curtain And Roller Shutters 58 M 100/11M

Tubular Motor For TM2 Curtain And Roller Shutters 58 M 100/11M

Tubular motor with mechanical travel window for push button control with manual rescue maneuver

TECHNICAL CHARACTERISTICS: Max torque: 100 Nm Lifting capacity: 115 Kg Max speed: 11 rpm Continuous Use Time (ROT): 4 min Network supply voltage: 230 V 50 Hz Max power: 360 W Max stroke: 29 Motor diameter: 58 mm Length with adapter (L): 703 mm Degree of protection: IP44 The package includes: tubular motor (with connecting cable length 2.50 m) End-stroke adjustment key instruction manual
