FAAC 143201 TM2K KIT MINI 45 25/17_45kg

TM2K KIT MINI 45 25/17_45kg

TECHNICAL CHARACTERISTICS: Max torque 25 Nm 30 Nm 50 Nm Lifting capacity 45 Kg 55 Kg 90 Kg Max speed 17 rpm 12 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 225 W 250 W 275 W Max run 25 Motor diameter 45 mm Length with adapter (L) 546 mm Degree of protection IP 44

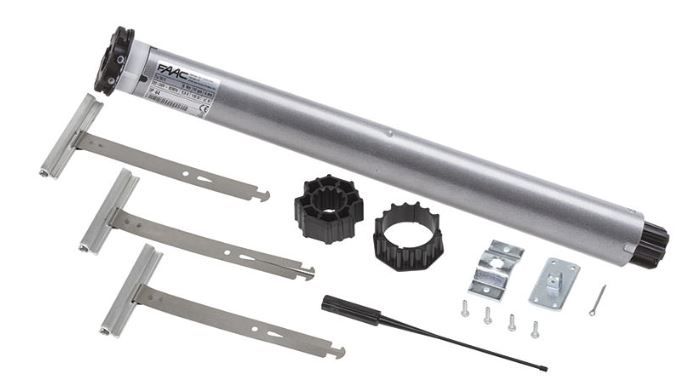

The TMODE KIT MINI package includes: 1 TM245 Tubular Motor (with instructions and adjustment key) 1 Ø60mm octagonal tube adapter 1 Engine support 3 flexible steel attachments for attaching the roller shutter to the winding roller
