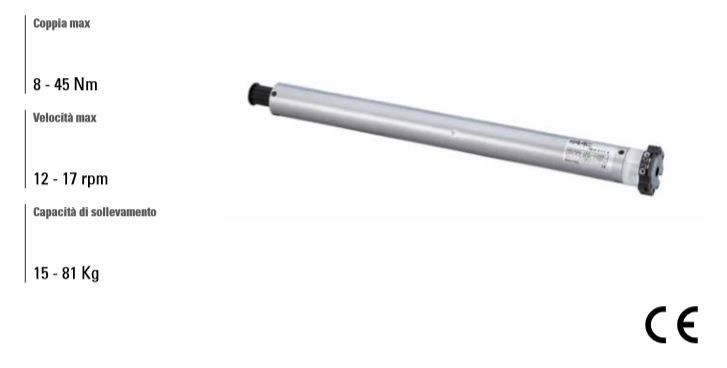

FAAC 130009 TM45 25/17 R 433MHZ TUBULAR MOTOR

TM45 25/17 R 433MHZ TUBULAR MOTOR

TECHNICAL CHARACTERISTICS: Max torque 25 Nm Lifting capacity 46 Kg Max speed 17 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 250 W Max run 16 Motor diameter 45 mm Length with adapter 678 mm Degree of protection IP 44

Lifting capacity means the maximum weight that can be lifted with a 60 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor with integrated receiver (with connection cable length 2.7 m) - end of the stroke adjustment key - instruction manual
