FAAC 130026 TM45 40/17 ER TUBULAR MOTOR

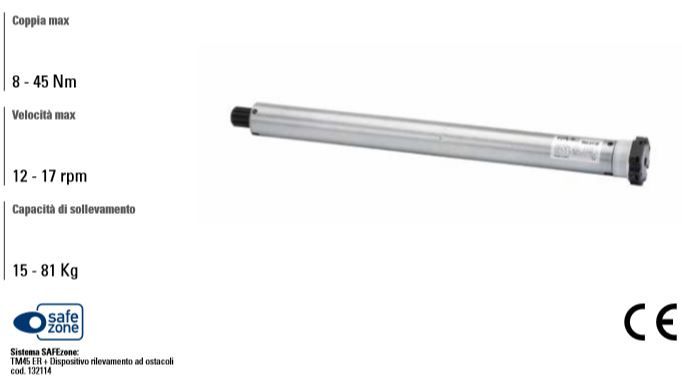

TM45 40/17 ER TUBULAR MOTOR

SafeZone system: TM45 ER + Obstacle detection device

TECHNICAL CHARACTERISTICS: Max torque 40 Nm Lifting capacity 72 Kg Max speed 17 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 300 W Max run 51 Motor diameter 45 mm Length with adapter 500 mm Degree of protection IP 44

Lifting capacity means the maximum weight that can be lifted with a 60 mm diameter winding tube including winding coefficient and friction.
