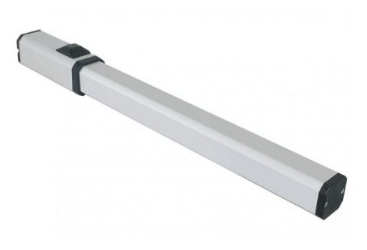

GIBIDI 44201/O TOP 441 SLAC TOUSEK

MT Code: GBD_44201/O
Manufacturer Code: 44201/O
Brand: GIBIDI

Description

SLAC, doors up to 6.0 m, Always Free when Opening and Closing

230 Vac hydraulic

operators, dedicated to medium and large swing gates and weight. Suitable for both residential and intensive use.

EASY TO INSTALL

TOP is already preloaded and adjusted at the factory, ready for use, no purge valve, no oil to refill. Mounting brackets included

QUIET AND FAST

Extremely quiet. Also available with a fast hydraulic pump for those who want to minimize opening and closing times

TECHNOLOGICAL AND SAFE

TOP is built with a unique technology, vacuum-loading leaves no air residue inside, so no condensation and emulsion. The pump-distributor coupling is without any gasket. A unique system destined to remain unchanged over time

A COMPLETE AND RELIABLE RANGE

From a small residential gate to 6-meter commercial or industrial doors. Special motors for intensive use. Standard or fast speed, reversible or irreversible versions. Only the best, only the TOP.

Use: INTENSIVE

Frequency of use: 55%

Motor supply: 230 Vac - 50/60 Hz

Absorbed power: 190W Degree of protection:

IP65 Rod speed:

10 mm/s Max. rod stroke:

440 mm Max.

thrust force: 4500 N Force adjustment: HYDRAULICS Speed adjustment: ELECTRONIC ** Max. leaf length:

6.0 m * Operating temperature:

-20°C +60°C Encoder/end stroke:

NO Lubrication

: GBD
