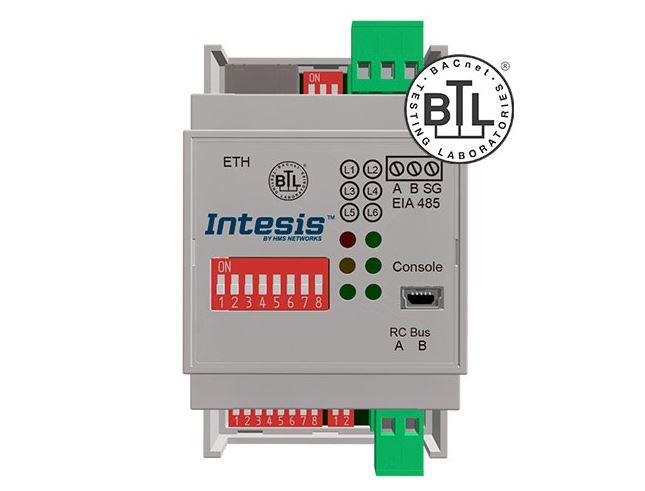

INTESIS INBACTOS001R000 Toshiba VRF and digital systems at the BACnet IP/MSTP interface

The Toshiba-BACnet gateway enables fully bi-directional communication between Toshiba VRF units and digital air conditioners and BACnet IP or MSTP networks.

CHARACTERISTICS

• The BTL brand guarantees full interoperability with BACnet devices.

• Supports BACnet IP and BACnet MS/TP.

• Configuration from on-board DIP-switch.

• IP settings available in a web interface.

• Quick and easy installation (connect and set up the DP-SW).

• External power not required.

• Simultaneous control of the AC unit via IR remote control and BACnet IP or MS/TP.

• Small dimensions 93 x 53 x 58 mm.

• Mountable on DIN rail, wall or even inside the indoor unit in some AC models.

• Abstraction of air conditioning unit properties and functionality as fixed BACnet objects.

• The occupancy function saves energy. The costs relating to HVAC systems in a building are among the highest and this type of function allows them to be reduced.

• Total control and monitoring of the AC unit from BACnet, including internal variables of the AC unit, operating hours counter (for checking filter maintenance) and error indication.

Description
The gateway is connected directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature set point… but the monitoring of errors, alarms and some internal variables.
The product can be installed and configured in a very short time. It's just a matter of wiring the gateway to the AC unit and configuring the DIP-SW accordingly. No configuration and power software required. The product offers a web interface to easily monitor and control the indoor unit connected to the gateway. Additionally, IP network settings can be established from this web interface
