ARCUS-EDS 22413204 Touch_it-PC35 Black

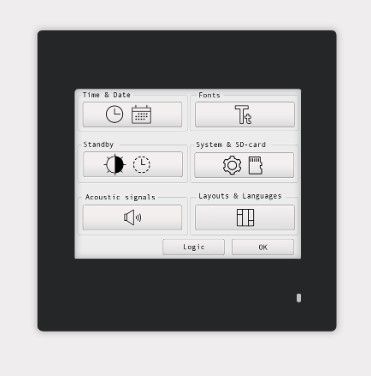

<p/the product ARCUS-EDS 22413204, called Touch_it-PC35 black, is a touch panel designed for integration into KNX-based home automation and building management systems.

Technical characteristics

The Touch_IT-PC35 has a 3.5-inch color display with resistive touch technology, allowing an intuitive and precise interaction with the user.

Food and Consumption

The device can be powered through an auxiliary voltage of 9 to 32 V DC, with a current consumption of 60 mA at 24 V DC. In addition, the device can be powered via the EIB/KNX bus with a voltage of 21 to 32 V DC and a current consumption of less than 5 mA.

Operation and Display Elements

• 1 white signal LED
• A buzzer for acoustic signals
• EIB/KNX LED

Connections and Clamps

• Red/grey for connection to the EIB/KNX bus
• White/yellow for connecting to the auxiliary power supply
• Micro USB
• Micro SD card (maximum 32 GB)

Mechanical Data

The panel has a PC-ABS plastic housing with dimensions of 96 x 96 x 15 mm and a weight of about 150 g. The installation takes place through a built-in box, compatible with German and Swiss standards.

Electrical Safety

The device complies with the following safety standards:

• Pollution degree: 2 (EN 60664-1)
• Degree of protection: IP20 (EN 60529)
• Protection class: III (IEC 1140)
• Overvoltage class: III (IEC 664-1)

Functionality

The touch_IT-PC35 offers a wide range of features, including:

• Lighting control and adjustment, including RGB control with color selection
• Viewing the status of the switches in the building
• Managing curtains and blinds
• Visual and acoustic alarm functions
• Viewing and setting temperature control parameters
• Control of multiroom audio systems
• Weekly timers and astronomical timers for monitoring at dusk and dawn
• Data recording and graphic display on the screen
• Logical functions that can be implemented through a scripting language
• Separate display page for alarm functions
• Protect pages and items with global or dedicated passwords
• Customizable layouts, visual styles, and standby options
• Support for multiple languages

Sensors and Temperature Control

The device includes an integrated temperature sensor and can manage temperature control functions, including:

• PI control algorithm, on/off; PWM
• Continuous monitoring and control of 2- and 4-tube fan coils
• Automatic and manual operating modes for HVAC
• Window contact management and forced comfort control
• Management of an additional temperature sensor via the data bus
