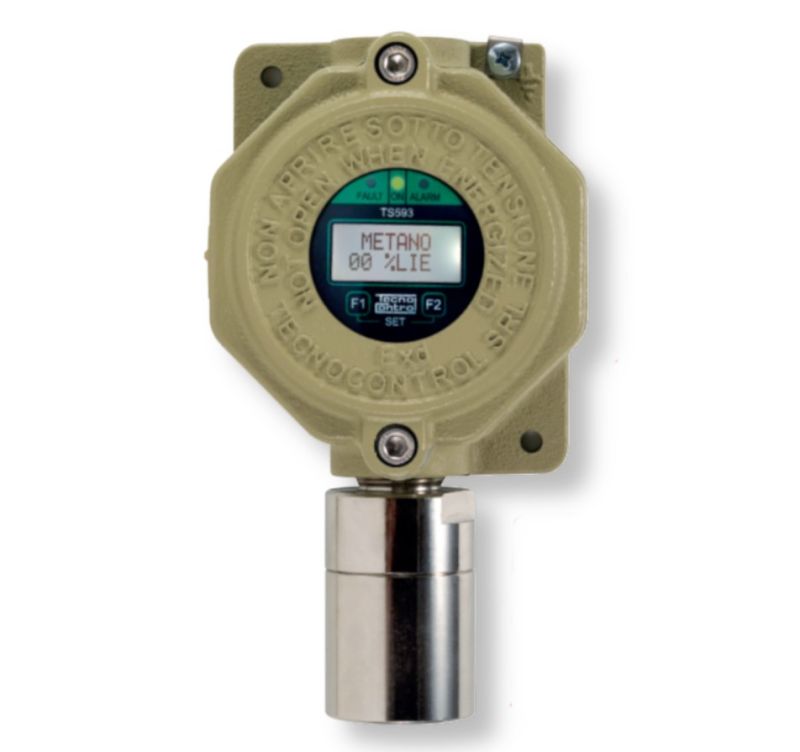

TECNOCONTROL TS593IX 4-20mA Ex-d ATEX infrared gas detector with display on request

MT Code: TCC_TS593IX
Manufacturer Code: TS593IX
Brand: TECNOCONTROL

Description

4-20mA Ex-d ATEX infrared gas detector with display on request

Gas detectors in explosion-proof housing for use in areas with potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

• Power supply: 12÷24 Vcc
• Atex marking: II 2G Ex d IIC T6 Gb
• No. 1 linear output 4÷20 mA • Polarized plug-in terminals
• Provided with a display with real-time display of the gas concentration
• Non-intrusive calibration

Gas Detected: Gas on request Replacement
cartridge: ZSI01X/EX
Measuring range: 0÷ 100% LFL Calibration
cylinder: B0200 Average life in clean air: >5 years

Data Sheet
