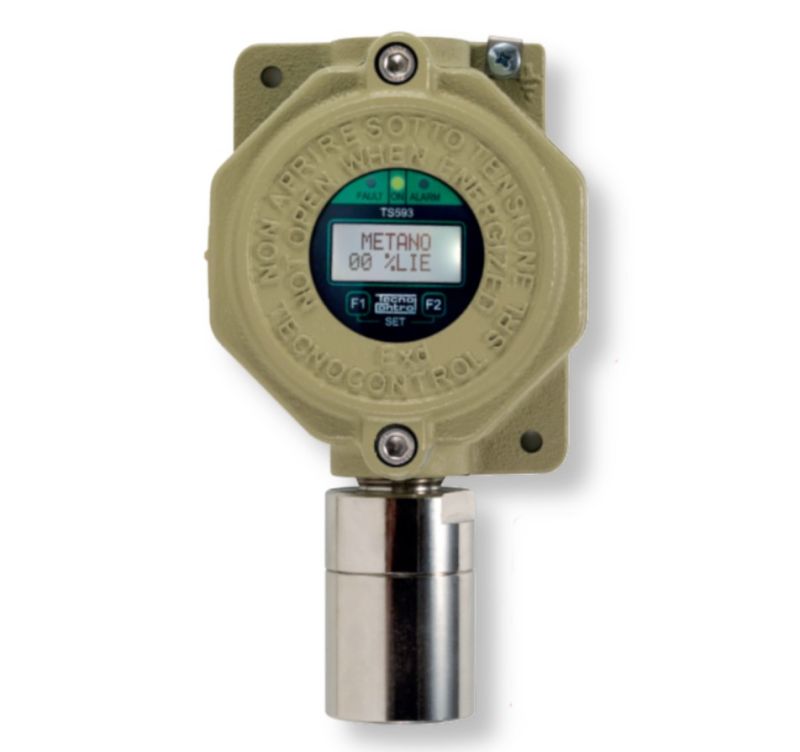

TECNOCONTROL TS593PX-H Exd ATEX pellistor flammable gas detector with display 4-20mA display on request - high performance

Exd ATEX pellistor flammable gas detector with display 4-20mA display on request - high performance

Gas detectors in explosion-proof housing for use in areas with potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)

• Power supply: 12÷24 Vcc
• Atex marking: II 2G Ex d IIC T6 Gb
• No. 1 linear output 4÷20 mA • Polarized plug-in terminals
• Provided with a display with real-time display of the gas concentration
• Non-intrusive calibration

Detected Gas: See table 2 Replacement
cartridge: See table 2
Measuring range: 0÷ 100% LFL Calibration
cylinder: B0200 Average
life in clean air: >5 years
