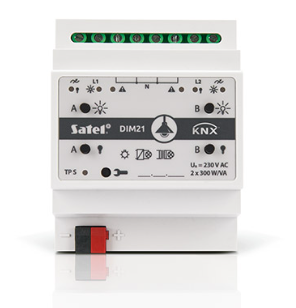

SATEL KNX-DIM21 Two-channel universal dimmable KNX actuator allowing continuous control of light sources up to 300 W per channel

Two-channel universal dimmable KNX actuator allowing continuous control of light sources up to 300 W per channel

The KNX-DIM21 module is a universal two-channel dimmable KNX actuator that allows continuous control of light sources up to 300 W per channel. The light can be turned on/off, dimmed (darker)/dimmed (brighter), set using a predefined scene or another function via the KNX bus. The actuator can be used with resistive, inductive and capacitive loads (R, L, C).

The module is designed for use with 230 V AC voltage

Characteristics:

- communication with KNX bus via integrated bus connector

- automatic recognition of the type of connected load

- adjustable lighting characteristic to adapt to the type of load

- two-stage firmware hardware overheat protection system

- overload protection

- feedback on the status of the module and individual channels

- definable behavior of each channel in the event of loss and restoration of KNX voltage

- definable behavior of each channel in the event of voltage recovery

- time functions (switching delay, scale function with warning option and change of operating time)

- value forcing function

- option to recall scenes for each channel using 1 and 8 bit commands

- Manual operation of each channel state using the buttons on the enclosure

- LED to indicate the status of each channel and signal problems

- module configuration via ETS software

- mounted in distribution boxes, on DIN rail (35 mm)
