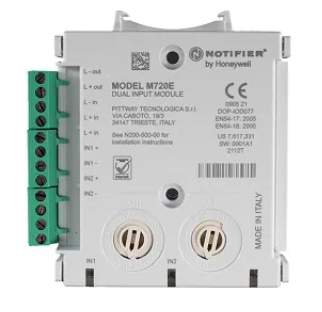

NOTIFIER M720 Two-input module usable with control panels

Two-input module that can be used with addressed analog control panels. The controlled inputs will be on a supervised line. The module - using two consecutive addresses - is addressed by means of rotary selectors numbered from 01 to 159. These are equipped with a green LED blinking under normal conditions and a fixed alarm light. The module has d? short circuit isolator. CPR certificate in accordance with EN54 standards parts 17 and 18. 15-30 Vcc power supply. Quiescent current of 340 microA and 600 microA with active LED. Operating temperature from -20 degrees C to +60 degrees C. Relative humidity up to 95 percent.
