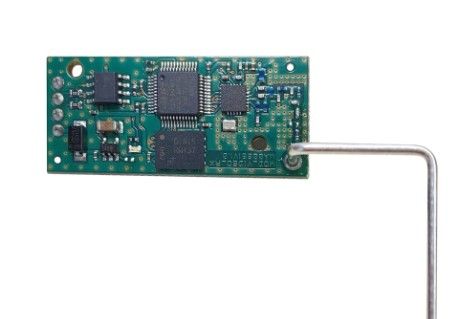

AVS ELECTRONICS 1121120 RVS VIDEO SATELLITE plug-in bidirectional radio receiver module for video sensors

- Radio technology: bidirectional GFSK FM 868 MHz

- Connection: Plug-in plug-in

- Image memory: up to 125 video events complete with 10 frames each

- Image reception speed: 100Kbit/s (about 25' full load)

- Power supply and absorption: 13.8 Vdc - 30 mA max

- Receives up to 125 video sensors

- Possibility to recall images/events from the event memory (RAPTOR RT range)

- Compatibility: RAPTOR range (with the exception of the RAPTOR LC series) and WS 4 VIDEO bidirectional sensors

- Dimensions (LxWxH): 43 x 10 x 19 mm
