ARCUS-EDS 90800105 U-5

MT Code: ARC_90800105
Manufacturer Code: 90800105
Brand: ARCUS-EDS

ARCUS-EDS 90800105 Product Description

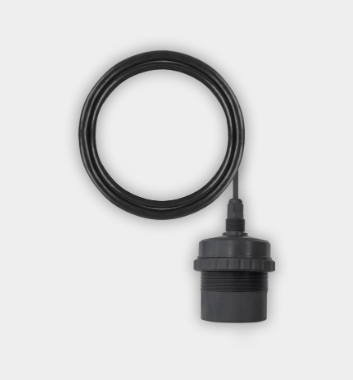

The ARCUS-EDS 90800105 product, called U-5, is an ultrasonic head designed to measure and adjust filling levels in water tanks or oil tanks of different shapes.

Technical characteristics

This ultrasonic sensor is an integral part of the SK80-F level measurement system and offers the following features:

Maximum filling height: 5 meters
Cable length: 10 meters
Measurement technology: Uses ultrasonic waves to determine the fluid level in the tank.
Integration with KNX: The sensor is compatible with the KNX automation system, allowing complete integration with other devices in the system.

Applications

The U-5 sensor is ideal for a variety of applications, including:

Level measurement in water tanks
Level measurement in oil tanks
Automatic adjustment of filling levels

Its robust design and measurement accuracy make it an essential component for automation systems that require accurate management of fluid levels.

Data Sheet

Feature	Value	Unit of measure
Codice a barre	8000002627694
Codice Produttore	90800105
Brand	ARCUS-EDS
Campo di misura	0,3 .. 5	m
Precisione	0,5	% FS
Lunghezza cavo	10	m
Dimensioni	68x80	mm
Grado di protezione IP	65
