FAAC 108725 S800H SBW 180° ENC Swing Gate Underground Motor Actuator

S800H SBW 180° ENC Swing Gate Underground Motor Actuator

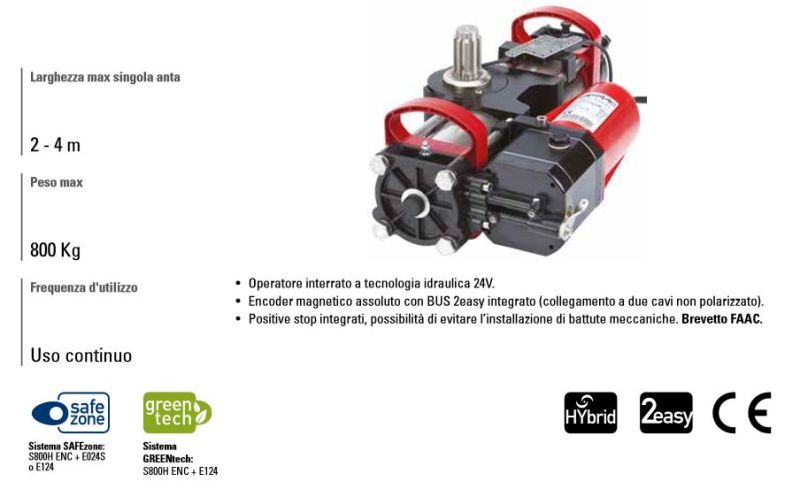

24V underground hydraulic actuator Maximum width of a single door: 2 — 4 m Max weight: 800 Kg Frequency of use: Continuous use - Underground operator with 24V hydraulic technology. - Absolute magnetic encoder with integrated 2easy BUS (connection to two non-polarized cables). - Integrated positive stops, possibility to avoid the installation of mechanical breaks. FAAC patent. S800H ENC includes: a hydraulic actuator with open/close hydraulic lock (CBAC) or without lock (SBW), an absolute magnetic encoder, an unlocking and adjustment key. The supporting box includes: a steel support box with cataphoresis treatment with an anti-rotation pin, a lid in brushed stainless steel.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: With 24V brushes Max power: 60 W Max angular speed: 5.5°/s (with E024S) — 8.2°/s (with E124) Max door weight: 800 Kg Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP67 Weight: 15 Kg Frequency of use: Continuous use Max leaf width: 4 m Oil type: FAAC HP OIL Dimensions (LxDxH): Actuator 450 x 220 x 160 — carrier box 507 x 283 x 200 mm Electronic equipment: Not included
