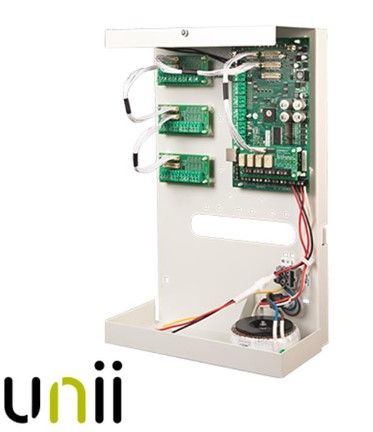

TKH SECURITY 4602 UNIi central unit 128 inputs

Product Description

• Burglar alarm control unit 8-128 wired and/or wireless zones
• The number of zones can be expanded to 512 zones via one license
• Inputs: standard 8 zones wired on the main board, expandable up to a maximum of 32 zones in the panel using the inputs of the expansion board (art. no. 004664)
• Wired zone expansion via I/O modules (with and without power supply), maximum 15 pieces.
• RS-485 bus: maximum 1 piece
• Wireless expansion via wireless interface, max 2 pieces
• Supplied as a separate control panel, the control panel must be ordered separately
• Integrated IP dialer, SIA DC09, SEC IP 2.0
• Print GPRS plugin available optionally
• Outputs: 2 relays, 2 oc (200 mA), 1 speaker, 1 siren.
• The outputs can be expanded using the expansion board (relay/open collector).
• Keyboard, maximum 8 pieces (choice of white or black, with or without DESFire reader) 1000 PIN codes and/or DESfire tags
• Switching of 8 sections and/or groups
• Maximum. 8 access readers via door controller (art. no. 004650 / 004651) and card reader interface (art. no. 004628) Maximum. 2 Aperio hubs and 16 locks Time switch, 8 pieces for automatic on/off Maximum. 25 Macro Rules
• Historical overview 500 events
• Freely programmable via the UNii management software or the UNii online tool Free Android or IOS user app 15VDC-3A switching power supply
• Metal case 400 x 255 x 120 mm
• Maximum battery capacity: 12Ah Approval: EN50131, Grade 3
