TKH SECURITY 4600 UNIi central unit 32 inputs

TKH SECURITY 4600 UNIi central unit 32 inputs

MT Code
TKH_004600
Manufacturer Code
4600
Brand
TKH SECURITY
TKH SECURITY
Satel open day
Description

Product Description

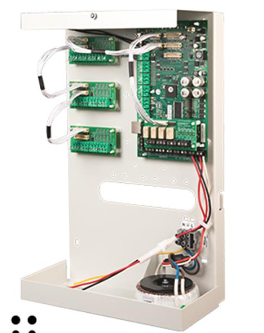

Burglar alarm control unit 8-32 wired and/or wireless zones

The number of zones can be expanded to 128 or 512 zones via one license

Inputs: standard 8 zones wired on the main board, expandable up to a maximum of 32 zones in the panel using the inputs of the expansion board (art. no. 004664)

Wired zone expansion via I/O modules (with and without power supply), maximum 15 pieces.

RS-85 bus, maximum 1 piece

Wireless expansion via wireless interface, max 1 piece

Supplied as a separate control panel, the control panel must be ordered separately

Integrated IP dialer, SIA DC09, SEC IP 2.0

Print GPRS plugin available optionally

Outputs: 2 relays, 2 oc (200 mA), 1 speaker, 1 siren.

The outputs can be expanded using the expansion board (relay/open collector).

Keyboard, maximum 4 pieces (choice of white or black, with and without DESFire reader)

50 PIN codes and/or DESfire tags

4 Switching of sections and/or groups

Maximum. 4 access readers via door controller (art. no. 004650 / 004651) and card reader interface (art. no. 004628)

Time switch, 8 pieces for automatic on/off

Maximum. 5 Macrorules

Historical overview 500 events

Freely programmable via the UNii management software or the UNii online tool

Free Android or IOS user app

15VDC-3A switching power supply

Metal case 400 x 255 x 120 mm

Maximum battery capacity: 12Ah

Approval: EN50131, Grade 3

Data Sheet
Codice Produttore 4600
Brand TKH SECURITY
