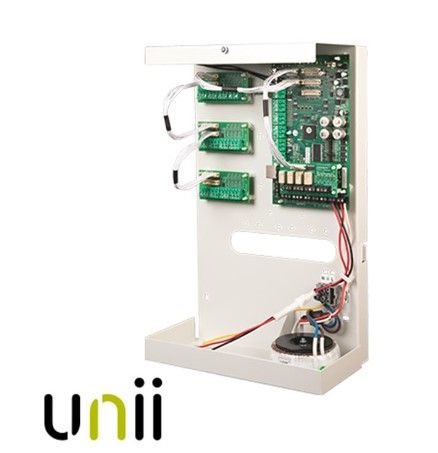

TKH SECURITY 4600 UNIi central unit 32 inputs

Product Description

• Burglar alarm control unit 8-32 wired and/or wireless zones
• The number of zones can be expanded to 128 or 512 zones via one license
• Inputs: standard 8 zones wired on the main board, expandable up to a maximum of 32 zones in the panel using the inputs of the expansion board (art. no. 004664)
• Wired zone expansion via I/O modules (with and without power supply), maximum 15 pieces.
• RS-85 bus, maximum 1 piece
• Wireless expansion via wireless interface, max 1 piece
• Supplied as a separate control panel, the control panel must be ordered separately
• Integrated IP dialer, SIA DC09, SEC IP 2.0 Print GPRS plugin available optionally
• Outputs: 2 relays, 2 oc (200 mA), 1 speaker, 1 siren.
• The outputs can be expanded using the expansion board (relay/open collector).
• Keyboard, maximum 4 pieces (choice of white or black, with and without DESFire reader)
• 50 PIN codes and/or DESfire tags 4 Switching of sections and/or groups Maximum.
• 4 access readers via door controller (art. no. 004650 / 004651) and card reader interface (art. no. 004628)
• Time switch, 8 pieces for automatic on/off Maximum. 5 Macrorules
• Historical overview 500 events
• Freely programmable via the UNii management software or the UNii online tool
• Free Android or IOS user app Switching power supply 15VDC-3A Metal housing 400 x 255 x 120 mm
• Maximum battery capacity: 12Ah Approval: EN50131, Grade 3
