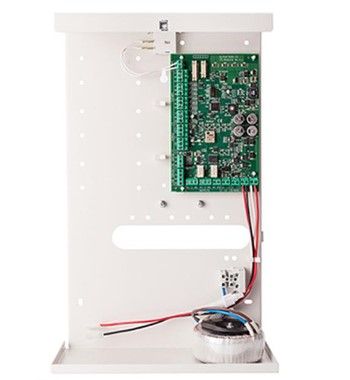

TKH SECURITY 004660EXP UNii I/O module (including power supply) in cabinet

Product Description

• UNIi expansion module with 8 wired inputs and 6 outputs
• Standard outputs (6): 2 relays, 2 open collector 200 mA, 1 speaker 4-8 ohm and 1 siren output Inputs expandable to 32 pieces using input expander printing (max. 3 pieces)
• Expandable outputs with 4 pieces, relay or open collector, using output expander printing (max. 1 piece)
• Incoming and outgoing communication line (RS-485)
• Anti-tamper switch
• Including own power supply 18VAC-50VA, own power consumption 90mA
• Maximum. current to consume: 2A
• Battery monitoring and charging circuit
• Metal case 400 x 255 x 135 mm Homologation: EN 50131-1:2006, Grade 3
