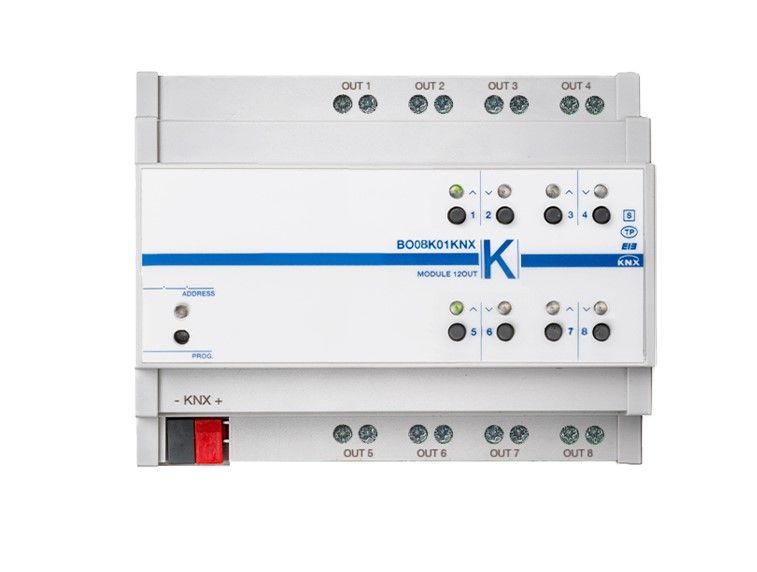

EELECTRON BO08K01KNX UNIVERSAL DIN MODULE 8 OUT

The EELECTRON BO08F01KNX device is a multifunctional actuator designed to integrate perfectly into domestic and industrial automation systems based on the KNX protocol.

Key Features

This DIN Rail actuator has 8 16A-230V AC relay outputs, offering significant flexibility in configuration and use.

Mode of Use

• 8 outputs for controlling lights and electrical loads.
• 8 channels for PWM valve control.
• 4 channels for controlling shutters and blinds.
• 4 channels for 3-way valve control.
• 2 fan coil actuators with 2 tubes.

Special Features

It is possible to combine 2 or 3 relays with logical interlock for the control of 4-tube or 3-speed fan coils. In addition, relay groups (up to 8) can be combined for special functions with logical interlock.

Version with microSD reader

<p-The BO08F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device, avoiding programming in the field or allowing a quick recovery in the event of a failure.

Technical Specifications

The device is powered via KNX bus and operates within a temperature range of -5°C to +45°C, with a maximum non-condensing relative humidity of 90%.
