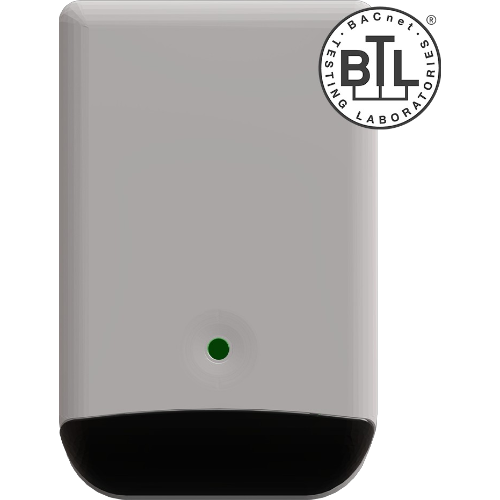

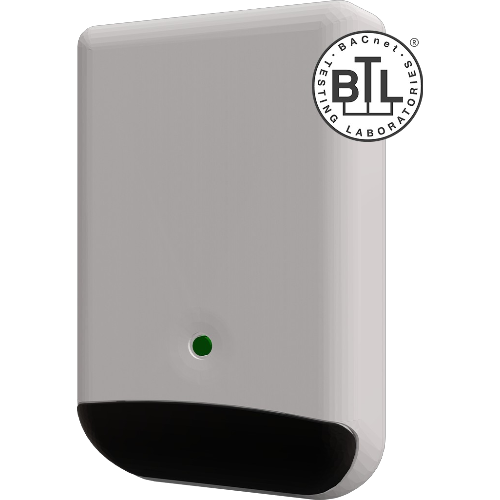

INTESIS IN485UNI001I100 Universal IR air conditioner with BACNET/Modbus interface - 1 unit

The Inthesis IN485UNI001I100 device is an innovative solution for integrating air conditioning units equipped with infrared receivers into BACnet MS/TP networks. This gateway allows a complete and natural integration of the functionality of the air conditioning unit into the building automation system.

Key Features

• Support for BACnet/IP (via Ethernet) and BACnet MS/TP (via EIA-485) connections.
• BACnet communication through polling or subscription requests (VOC), making the internal unit available through independent BACnet objects.
• Properties and functionality of the air conditioning unit abstracted into fixed BACnet objects.
• Room temperature and humidity sensor integrated into the interface.
• Self-learning function to automatically configure the IR remote configuration.
• The air conditioning unit can be controlled simultaneously via BACnet MS/TP and via its remote control.

Configuration and Management

The configuration of the gateway is simplified thanks to the use of the Intesis MAPS platform, which allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system.

Integrated Sensors and Functionality

• Built-in room temperature sensor.
• Integrated room humidity sensor.
• Self-learning function for configuring the IR remote control.

This device is ideal for building automation professionals who need to integrate air conditioning units into existing building management systems, offering an efficient and easy-to-implement solution.
