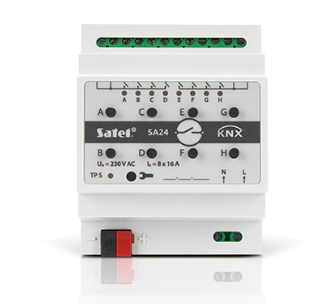

SATEL KNX-SA24 Universal switching actuator, which allows you to control electrical devices
- MT Code
- SAT_KNX-SA24
- Manufacturer Code
- KNX-SA24
- Brand
- SATEL
Description
Universal switching actuator, which allows you to control electrical devices (lighting, ventilation). The KNX-SA24 module has 8 relay outputs
The KNX-SA24 module is a universal switching actuator, which allows you to control electrical devices (lighting, sirens, ventilation). The module constitutes an interface between the electrical devices and the KNX system. The signals received from various sensors and other control devices are converted, via the module, into concrete actions, such as turning on/off the light or the fan.
The KNX SA24 module has 8 relay outputs. Each of them corresponds to a logical channel.
Characteristics:
- communication with KNX bus via integrated bus connector
- feedback on the status of the module and individual channels
- the behavior of each channel can be defined in the event of loss and restoration of KNX bus voltage
- the behavior of each channel can be defined in the event of mains voltage restoration
- time functions (flashing, on/off delay, staircase light function with early warning option and change of operating time)
- logical functions (AND, NAND, OR, NOR, XOR, XNOR)
- threshold value function
- safety functions
- state forcing functions
- scenes for each of the channels can be recalled using 1- and 8-bit commands
- Manually control each channel state using the buttons located on the case
- Status LED for each channel
- ability to switch between resistive, inductive and capacitive loads
- module configuration via ETS software
- mounted in distribution boxes, on DIN rail (35 mm)
Data Sheet
Codice a barre | 8000002634076 |
---|---|
Codice Produttore | KNX-SA24 |
Brand | SATEL |
